UP200 Nail Drill Machine 25,000 RPM Electric E-File for Manicure & Pedicure
Your system is carefully prepared and shipped free of charge through trusted logistics partners for safe professional equipment delivery.
The Professional UP200 Nail Drill Machine is a compact electric micromotor e-file system designed for professional manicure, pedicure and nail salon use.
The system features a continuously adjustable speed of up to 25,000 RPM and a high-torque carbon-brush micromotor handpiece designed for smooth, controlled operation during nail filing, shaping, polishing and surface preparation.
The UP200 control unit provides variable speed adjustment, forward and reverse rotation, overload protection and constant-speed feedback to help maintain consistent performance under working pressure.
The professional handpiece is designed for low-noise and low-vibration operation and features a twist-lock mechanism for quick drill-bit changes. Manufacturer specifications list approximately 2.5 N·cm maximum torque for the supplied handpiece configuration.
Key Features
- Professional electric nail drill / e-file system
- Up to 25,000 RPM
- Approx. 2.5 N·cm torque
- Continuously adjustable speed
- Forward and reverse rotation
- Constant-speed feedback
- Automatic overload protection
- Low-noise operation
- Low-vibration micromotor
- Carbon-brush motor design
- Twist-lock drill-bit system
- Suitable for manicure and pedicure work
- Designed for acrylic, gel and general nail filing

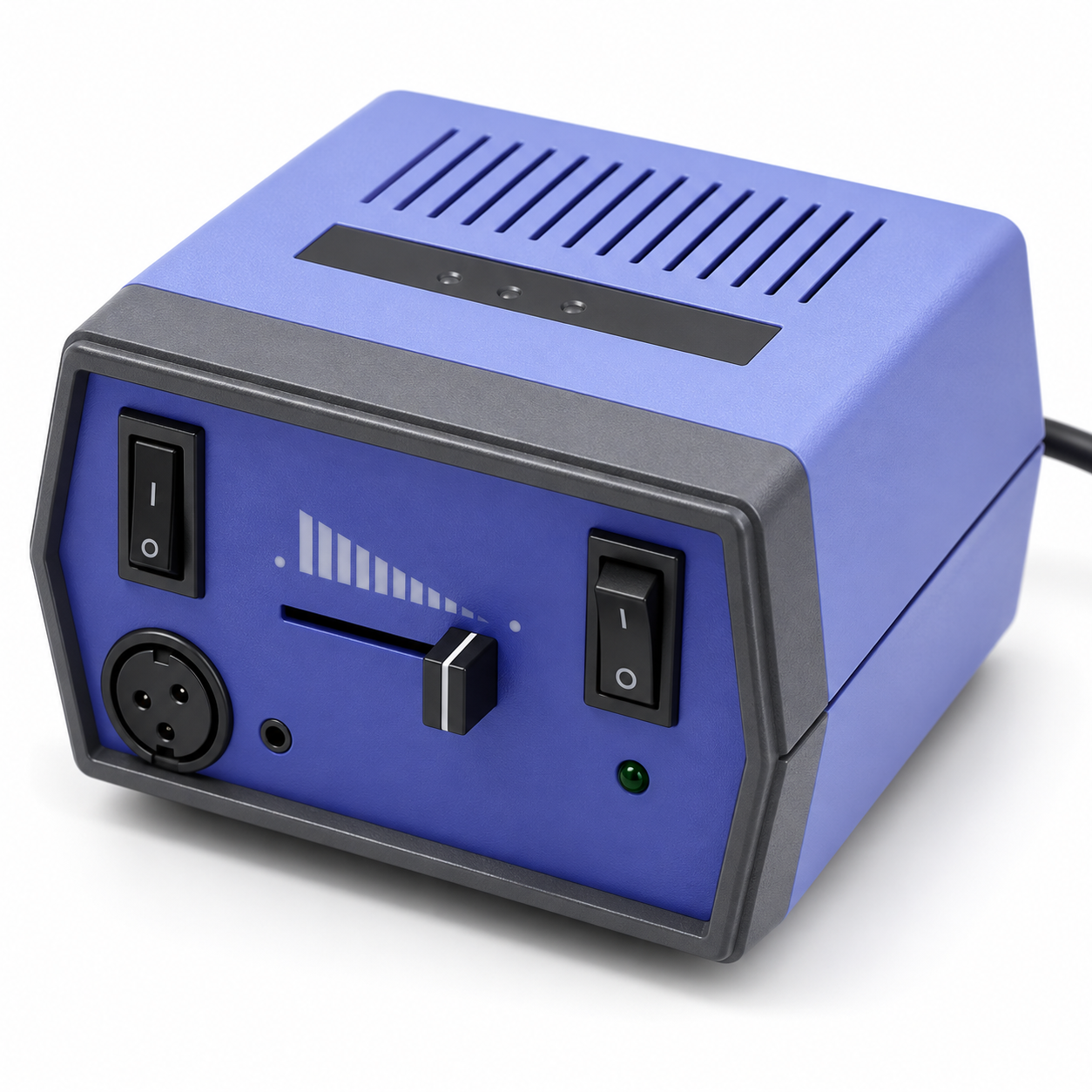

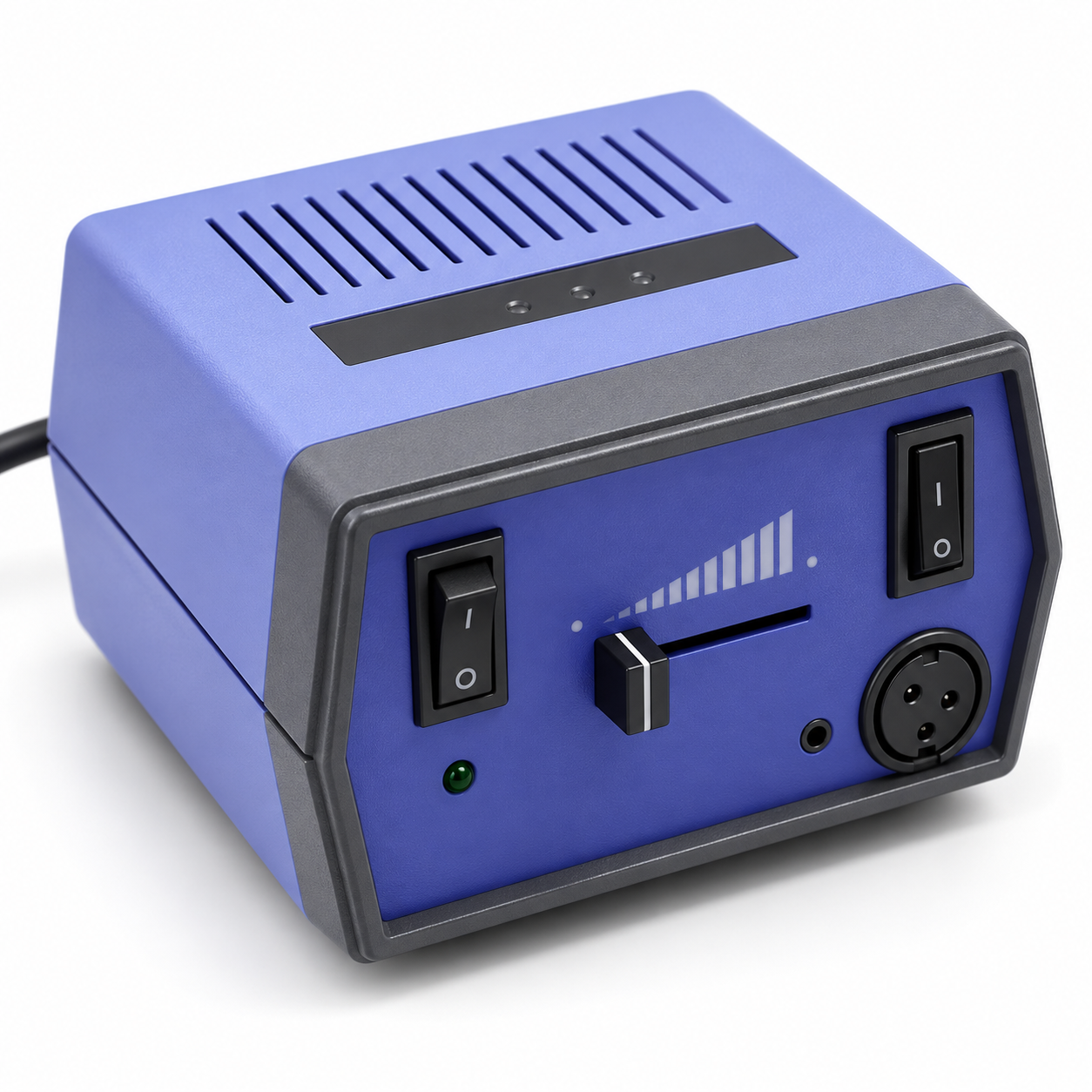

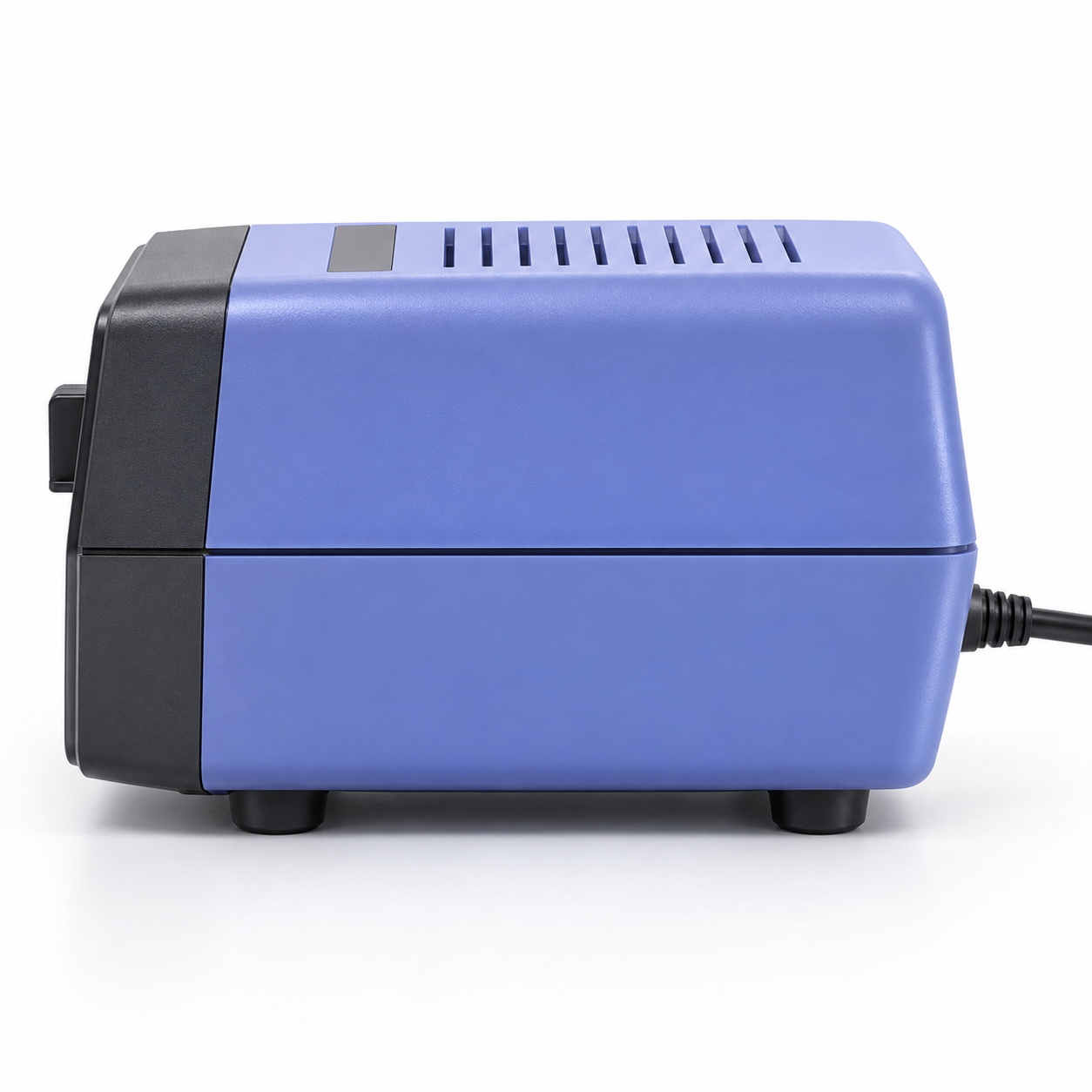

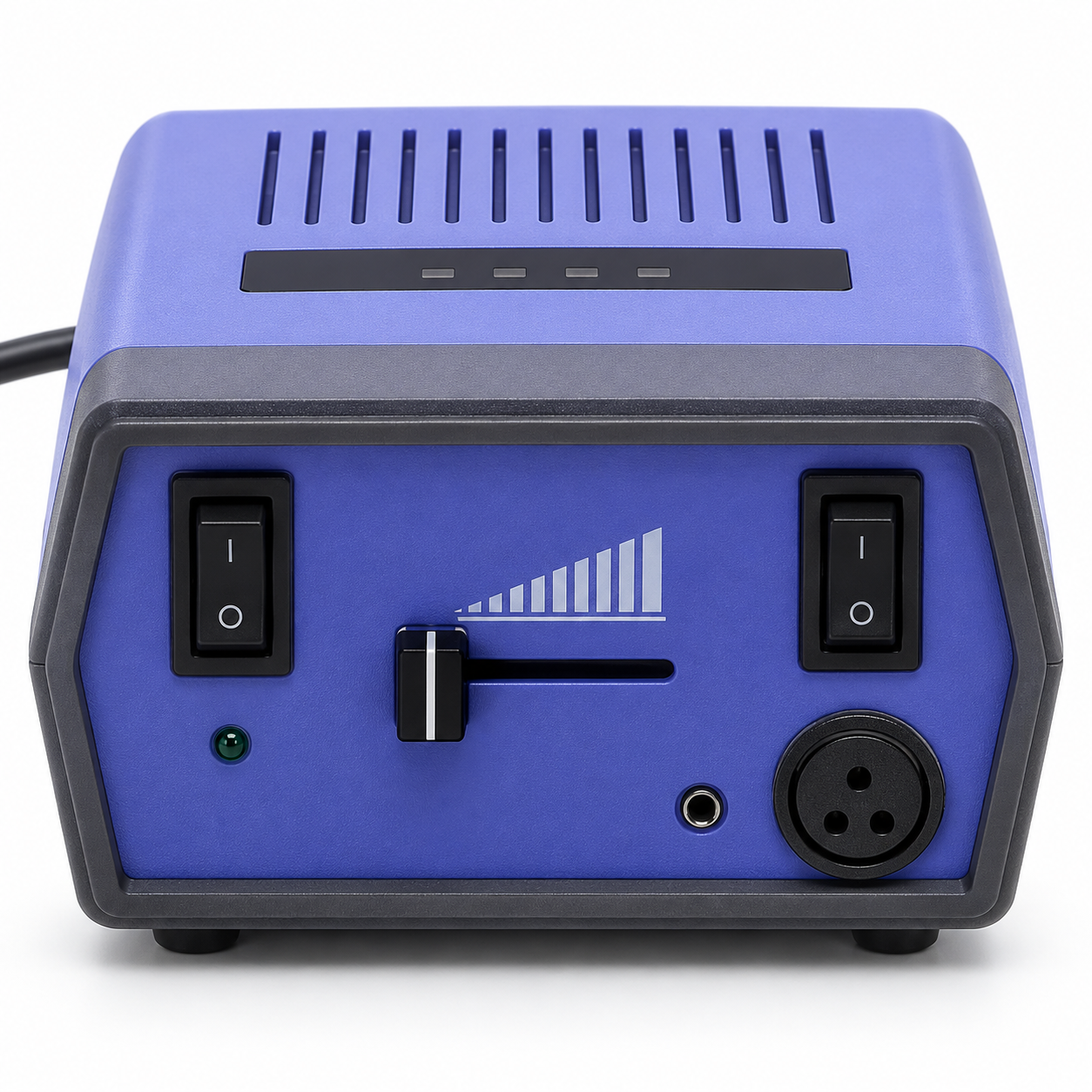

- Compact desktop control unit
- Replaceable carbon brushes
- Professional handpiece connection
The manufacturer describes the UP200 platform as using a brushed micromotor with smooth, low-vibration operation and electronic protection against overload or incorrect operation.
| Specification | Details |
|---|---|
| Model | UP200 |
| Product Type | Professional Electric Nail Drill / E-File |
| Maximum Speed | 25,000 RPM |
| Torque | Approx. 2.5 N·cm |
| Motor Type | Carbon-Brushed Micromotor |
| Speed Control | Variable / Continuous |
| Rotation | Forward & Reverse |
| Input Voltage | 110V / 220V AC |
| Frequency | 50/60 Hz |
| Output | Approx. 12–36 V, configuration dependent |
| Standard Bit Shank | 2.35 mm |
| Compatible Shanks | 2.35 mm / 3 mm / 3.175 mm depending on configuration |
| Handpiece Length | Approx. 130 mm / 5.1 in |
| Handpiece Diameter | Approx. 25 mm / 1.0 in |
| Handpiece Weight | Approx. 300 g / 10.6 oz |
| Control Unit Size | Approx. 13 × 13.5 × 9 cm |
| Imperial Size | Approx. 5.1 × 5.3 × 3.5 in |
The manufacturer’s UP200 listings specify 110/220 V, 50/60 Hz input, carbon-brush micromotor construction and compatibility with several common nail-drill shank sizes.

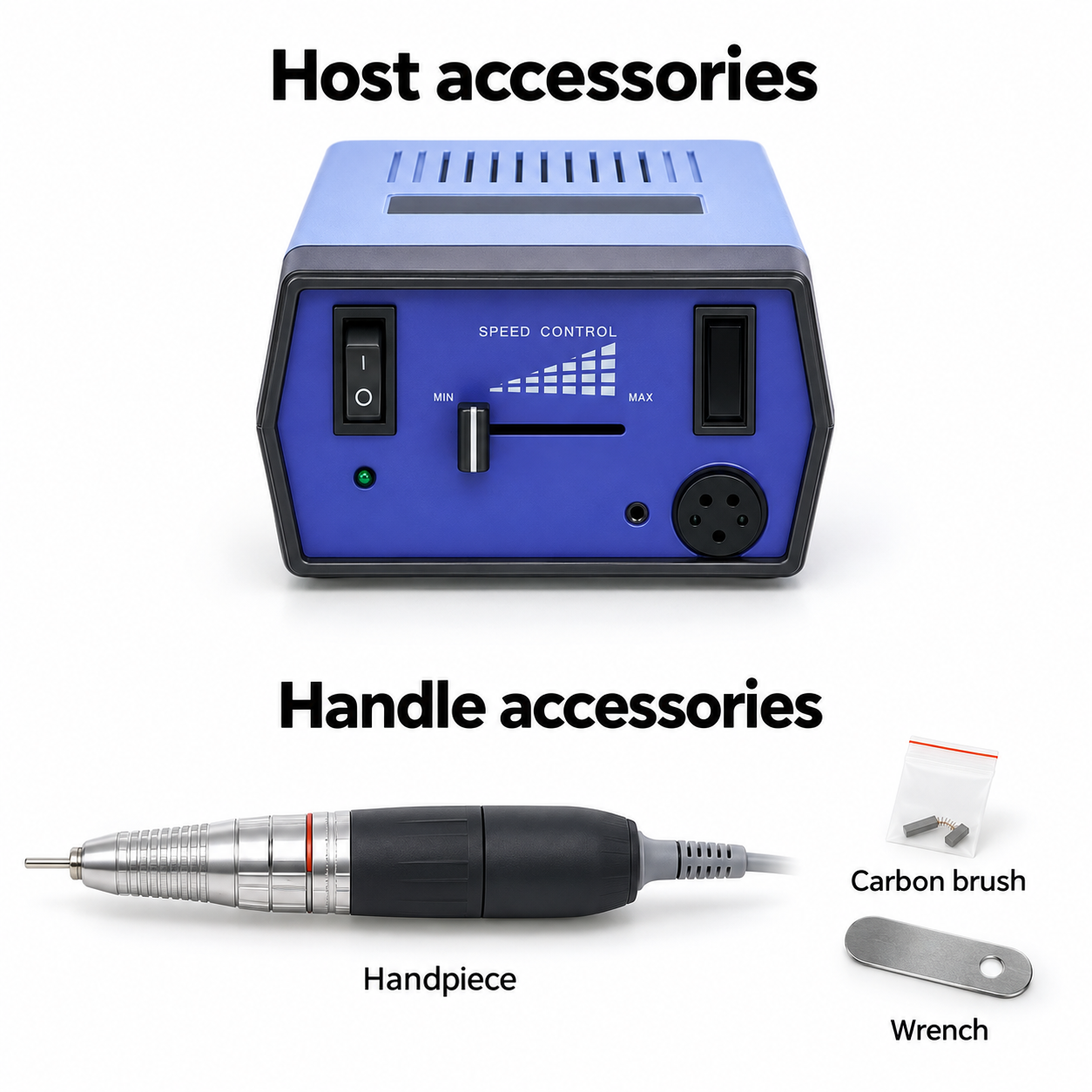

Handpiece
The supplied micromotor handpiece is designed for professional nail filing and polishing.
It provides:
- Maximum speed up to 25,000 RPM
- Approx. 2.5 N·cm torque
- Stainless-steel front section
- Low-vibration operation
- Low operating noise
- Twist-lock bit replacement
- Approx. 130 mm length
- Approx. 300 g weight
Your supplier image specifically shows MAX: 25,000 RPM, 2.5 N·cm torque, 130 mm length and 300 g weight.
